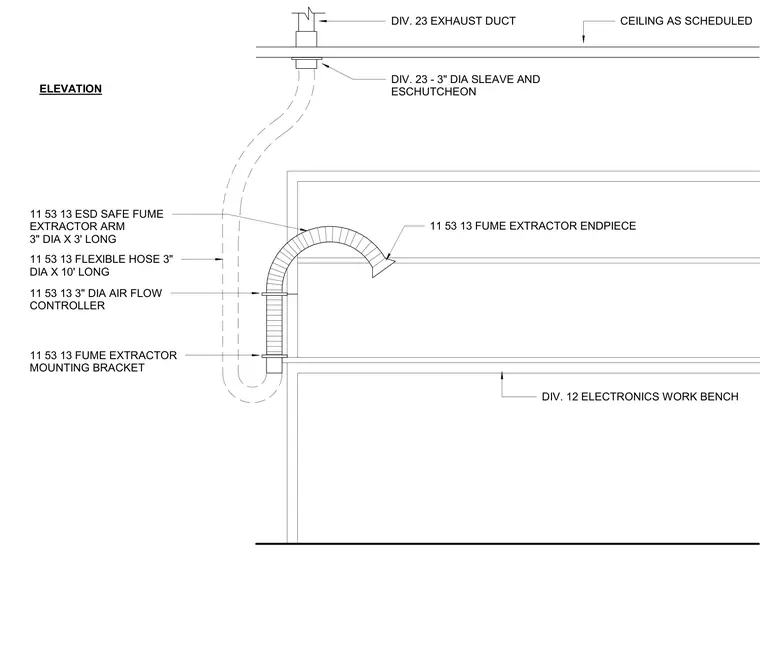

An ESD-safe fume extractor arm with a three-inch diameter by three-foot length connects to a ten-foot flexible hose, an airflow controller, and a mounting bracket attached to an electronics workbench. The exhaust system routes upward through a three-inch diameter sleeve and escutcheon at the ceiling to connect with a Division 23 exhaust duct.
DIV. 23 EXHAUST DUCT CEILING AS SCHEDULED DIV. 23 - 3" DIA SLEAVE AND ESCHUTCHEON 11 53 13 ESD SAFE FUME EXTRACTOR ARM 3" DIA X 3' LONG 11 53 13 FLEXIBLE HOSE 3" DIA X 10' LONG 11 53 13 3" DIA AIR FLOW CONTROLLER 11 53 13 FUME EXTRACTOR MOUNTING BRACKET 11 53 13 FUME EXTRACTOR ENDPIECE DIV. 12 ELECTRONICS WORK BENCH ELEVATION
