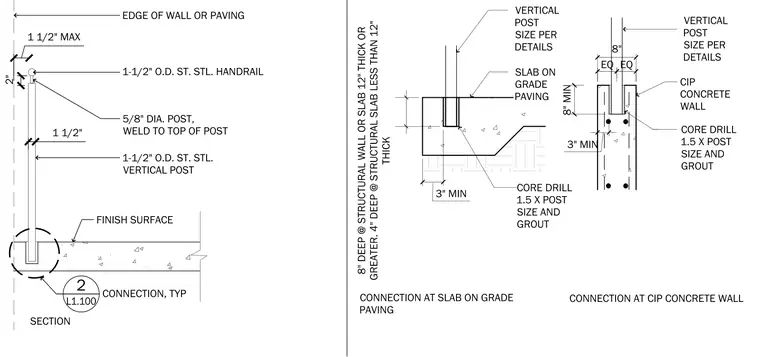

A one-and-a-half-inch outside diameter stainless steel handrail is supported by vertical posts of size per details. The vertical post connects to a five-eighths-inch diameter element welded to the top of the post. Two mounting conditions are detailed: core drilling one-point-five times the post size with grout into a slab on grade paving with a three-inch minimum depth, and core drilling into a cast-in-place concrete wall with an eight-inch depth and three-inch minimum clearance. Finish surfaces and edge of wall or paving dimensions are indicated.
SECTION 5/8" DIA. POST, WELD TO TOP OF POST 1 1/2" 2 1-1/2" O.D. ST. STL. HANDRAIL EDGE OF WALL OR PAVING 1-1/2" O.D. ST. STL. VERTICAL POST FINISH SURFACE CONNECTION, TYP 1 1/2" MAX CONNECTION AT CIP CONCRETE WALL 3" MIN CONNECTION AT SLAB ON GRADE PAVING SLAB ON GRADE PAVING CORE DRILL 1.5 X POST SIZE AND GROUT VERTICAL POST SIZE PER DETAILS CORE DRILL 1.5 X POST SIZE AND GROUT CIP CONCRETE WALL 8" EQ EQ 3" MIN VERTICAL POST SIZE PER DETAILS
