An isolation valve connects to the water supply line via a schedule 80 PVC fitting with a threaded outlet, three-quarter-inch galvanized street elbows, and a three-quarter-inch galvanized nipple with a four-inch minimum length. A three-quarter-inch brass drain valve with a slotted top receives a two-inch schedule 40 PVC pipe notched over the valve, extending upward to grade. The entire valve assembly rests within a gravel sump filled with three-quarter-inch washed gravel, surrounded by filter fabric and supported at the base by precast concrete pavers of standard brick size. A ten-inch round valve box encloses the vertical pipe extension up to the finish grade, with green lids specified for lawn areas and tan lids for planting beds.

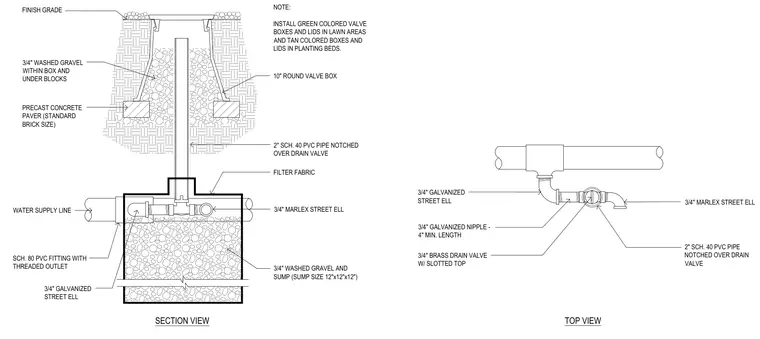

3/4" GALVANIZED STREET ELL 3/4" GALVANIZED NIPPLE - 4" MIN. LENGTH 3/4" BRASS DRAIN VALVE W/ SLOTTED TOP SECTION VIEW TOP VIEW FINISH GRADE PRECAST CONCRETE PAVER (STANDARD BRICK SIZE) 3/4" WASHED GRAVEL WITHIN BOX AND UNDER BLOCKS WATER SUPPLY LINE 3/4" WASHED GRAVEL AND SUMP (SUMP SIZE 12"x12"x12") SCH. 80 PVC FITTING WITH THREADED OUTLET FILTER FABRIC 2" SCH. 40 PVC PIPE NOTCHED OVER DRAIN VALVE 10" ROUND VALVE BOX NOTE: INSTALL GREEN COLORED VALVE BOXES AND LIDS IN LAWN AREAS AND TAN COLORED BOXES AND LIDS IN PLANTING BEDS. 2" SCH. 40 PVC PIPE NOTCHED OVER DRAIN VALVE 3/4" MARLEX STREET ELL 3/4" MARLEX STREET ELL 3/4" GALVANIZED STREET ELL
