Landscape · L-8R4NH

Metal Edging and Crushed Surfacing at Building Edge

Materials

Elements

About this detail

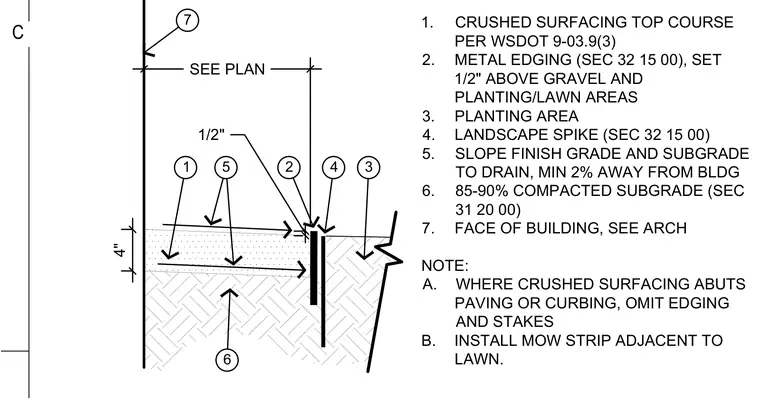

A four-inch thick top course of crushed surfacing rests over an eighty-five to ninety percent compacted subgrade, graded to slope a minimum of two percent away from the building face. Metal edging is secured with landscape spikes and set one-half inch above the gravel and adjacent planting or lawn areas. Where the crushed surfacing abuts paving or curbing, the metal edging and spikes are omitted, and a mow strip is installed adjacent to lawns.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
