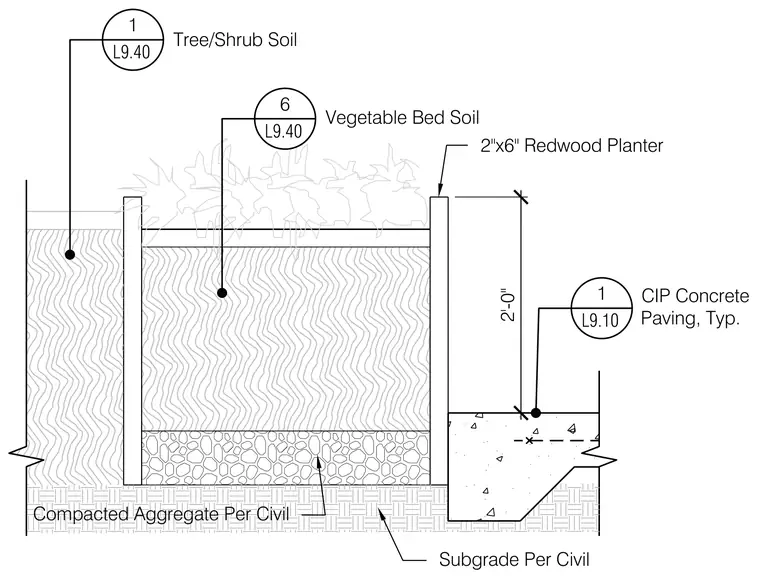

The assembly features a two-inch by six-inch redwood planter containing vegetable bed soil over a layer of compacted aggregate and subgrade. The planter rises two feet above typical cast-in-place concrete paving. Adjacent planting areas utilize tree and shrub soil.
2"x6" Redwood Planter Compacted Aggregate Per Civil Subgrade Per Civil 1 L9.10 CIP Concrete Paving, Typ. 6 L9.40 Vegetable Bed Soil 2'-0" 1 L9.40 Tree/Shrub Soil
