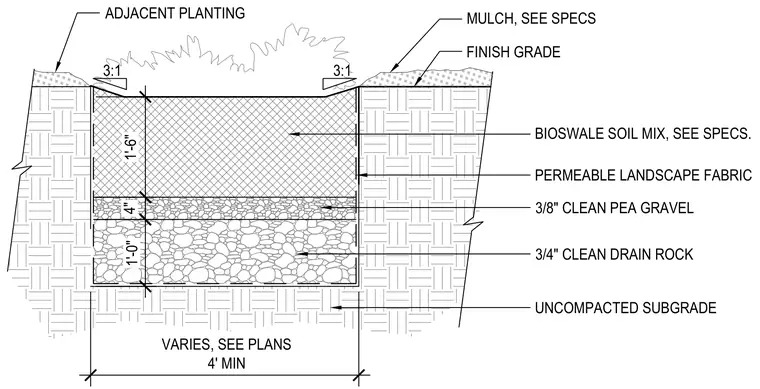

This bioswale section rests upon an uncompacted subgrade with a variable width of four feet minimum as sized per plans. A foundational layer of three-quarter-inch clean drain rock extends one foot deep, wrapped in permeable landscape fabric. Above the drain rock sits a four-inch layer of three-eighths-inch clean pea gravel. The upper portion consists of an eighteen-inch deep bioswale soil mix conforming to project specifications. Slopes at the banks are graded at three to one, finished with mulch and adjacent plantings.
VARIES, SEE PLANS 4' MIN ADJACENT PLANTING MULCH, SEE SPECS 3:1 3:1 1'-0" 4" 1'-6" UNCOMPACTED SUBGRADE 3/4" CLEAN DRAIN ROCK 3/8" CLEAN PEA GRAVEL PERMEABLE LANDSCAPE FABRIC BIOSWALE SOIL MIX, SEE SPECS. FINISH GRADE
