Fiberglass reinforced plastic panels are adhered to fiberglass mat gypsum board over metal partitions sized per plan. An outside corner molding is installed per the manufacturer with a corner guard placed where it occurs. A one-sixteenth inch butt joint is detailed between adjacent panels where required.

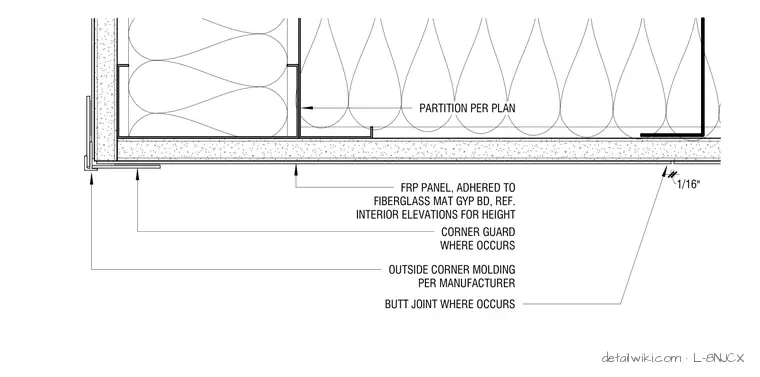

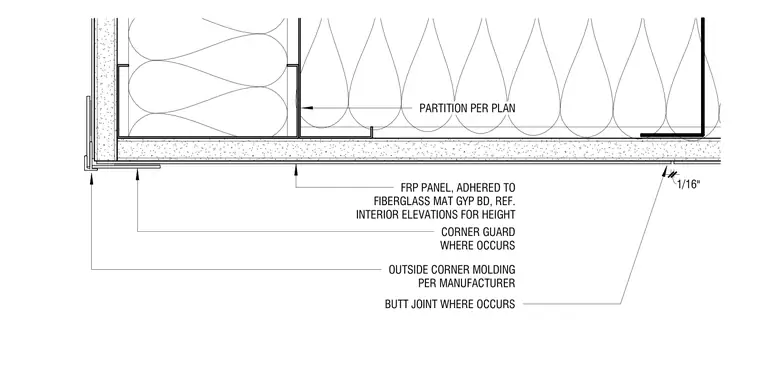

FRP PANEL, ADHERED TO FIBERGLASS MAT GYP BD, REF. INTERIOR ELEVATIONS FOR HEIGHT CORNER GUARD WHERE OCCURS OUTSIDE CORNER MOLDING PER MANUFACTURER PARTITION PER PLAN 1/16" BUTT JOINT WHERE OCCURS
