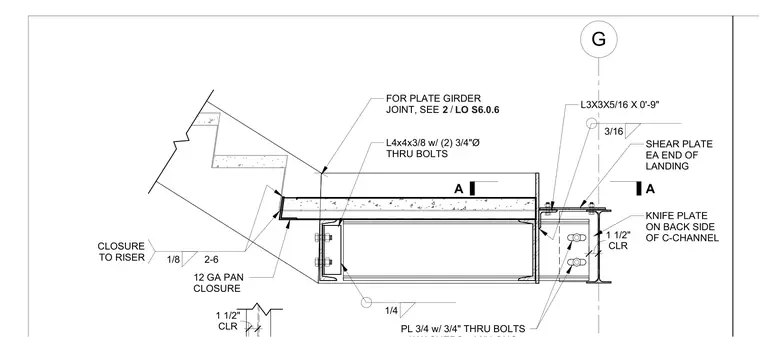

The landing beam connects to the outer stringer using a knife plate positioned on the back side of the C-channel with three-quarter-inch through bolts and a three-quarter-inch plate. A shear plate is provided at each end of the landing with a one-and-a-half-inch clearance. An L3x3x5/16 angle by zero-foot-nine-inches long ties into the assembly with a three-sixteenths weld. An L4x4x3/8 angle with two three-quarter-inch through bolts secures the plate girder joint. A twelve-gauge pan closure with a one-eighth weld finishes the riser interface.
G L4x4x3/8 w/ (2) 3/4"Ø THRU BOLTS FOR PLATE GIRDER JOINT, SEE 12 GA PAN CLOSURE 1/4 / 2 LO S6.0.6 CLR 1 1/2" PL 3/4 w/ 3/4" THRU BOLTS KNIFE PLATE ON BACK SIDE OF C-CHANNEL 1/8 2-6 CLOSURE TO RISER SHEAR PLATE EA END OF LANDING 3/16 L3X3X5/16 X 0'-9" A A CLR 1 1/2"
