Landscape · L-8ECG9

Planting Layout

Elements

About this detail

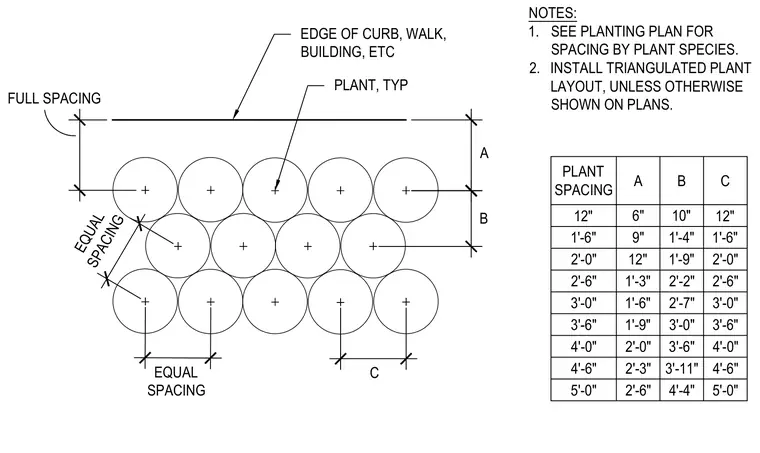

Plants are arranged in a triangular staggered grid layout referenced from an edge of curb, walk, or building. Equal plant spacing is maintained diagonally across rows, with specific offsets A, B, and C provided in a lookup table based on the full plant spacing dimension. Species-specific spacing and layout rules are coordinated per planting plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
