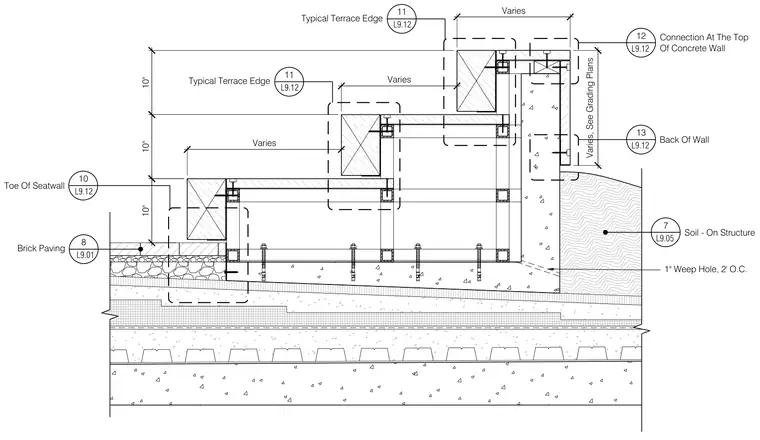

A multi-tiered terrace is constructed over a concrete structural slab and retaining wall assembly. The stepped planters feature brick paving surfaces supported by concrete curbs with variable riser heights of ten inches and variable tread widths. Drainage is provided through one-inch weep holes spaced at two feet on center along the base of the concrete wall. Soil-on-structure conditions interface with the back of the retaining wall per grading plans.
10" 10" 10" Varies Varies 1" Weep Hole, 2' O.C. Varies 10 L9.12 Toe Of Seatwall 12 L9.12 Connection At The Top Of Concrete Wall 11 L9.12 Typical Terrace Edge 11 L9.12 Typical Terrace Edge 13 L9.12 Back Of Wall Varies, See Grading Plans 7 L9.05 Soil - On Structure 8 L9.01 Brick Paving
