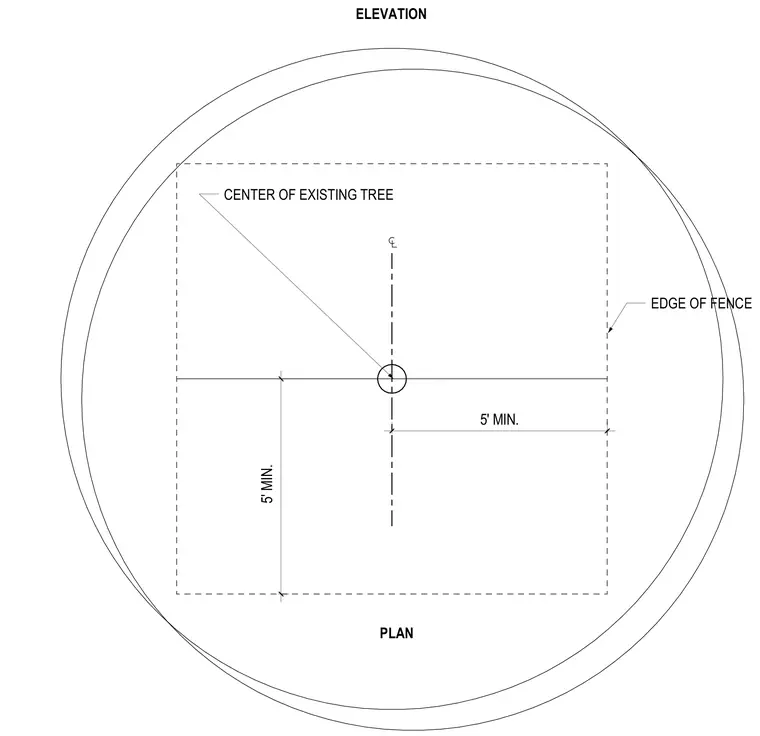

Tree protection fencing is established around existing trees with a minimum five-foot clearance from the center of the trunk to the edge of the fence. The layout establishes a protective perimeter zone to prevent construction damage to root systems.
CENTER OF EXISTING TREE 5' MIN. 5' MIN. EDGE OF FENCE ELEVATION PLAN
