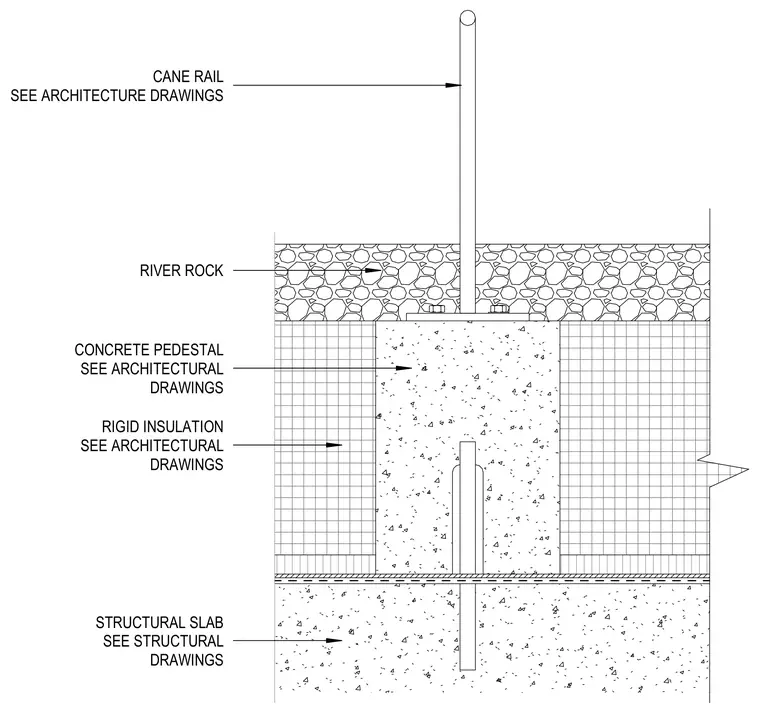

A cane rail extends upward through a river rock surface layer and mounts to a concrete pedestal. The pedestal sits above rigid insulation and is anchored into the underlying structural slab. Specific sizes and coordinate details are coordinated with architectural and structural drawings.
CANE RAIL SEE ARCHITECTURE DRAWINGS RIVER ROCK CONCRETE PEDESTAL SEE ARCHITECTURAL DRAWINGS RIGID INSULATION SEE ARCHITECTURAL DRAWINGS STRUCTURAL SLAB SEE STRUCTURAL DRAWINGS
