An adjustable wire shelving unit is composed of five open wire shelves supported by one-inch diameter roll posts anchored to a finished floor. Each shelf features one-inch high open wire seismic ledges on all four sides. The total unit height measures five feet zero inches unless noted otherwise, with the bottom shelf positioned six inches above the finished floor. At H3 closet locations featuring a concrete curb, the bottom shelf is set equal to the height of the curb.

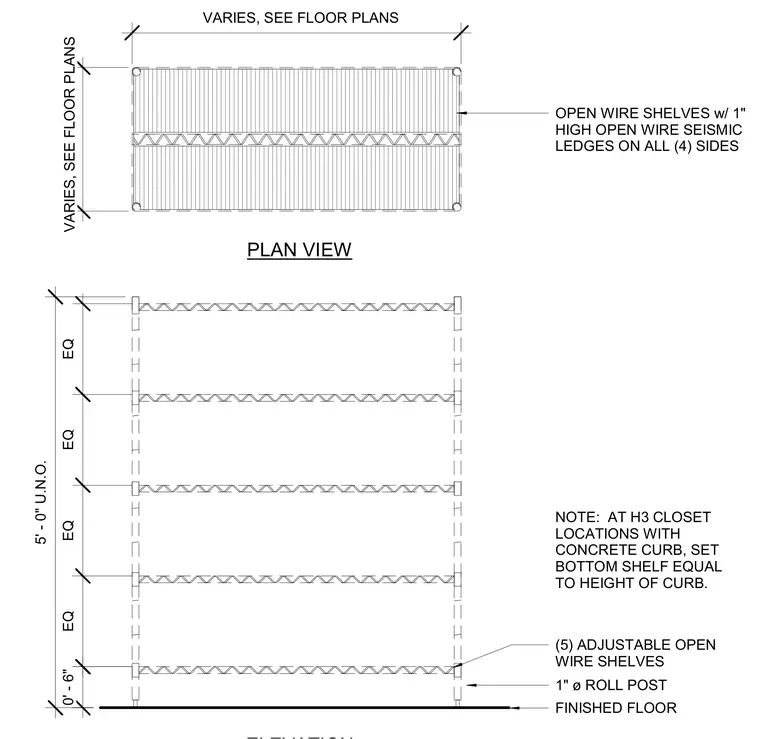

PLAN VIEW FINISHED FLOOR OPEN WIRE SHELVES w/ 1" HIGH OPEN WIRE SEISMIC LEDGES ON ALL (4) SIDES (5) ADJUSTABLE OPEN WIRE SHELVES 1" ø ROLL POST EQ EQ EQ EQ 5' - 0" U.N.O. 0' - 6" 1' - 9" 4' - 0" VARIES, SEE FLOOR PLANS VARIES, SEE FLOOR PLANS NOTE: AT H3 CLOSET LOCATIONS WITH CONCRETE CURB, SET BOTTOM SHELF EQUAL TO HEIGHT OF CURB.
