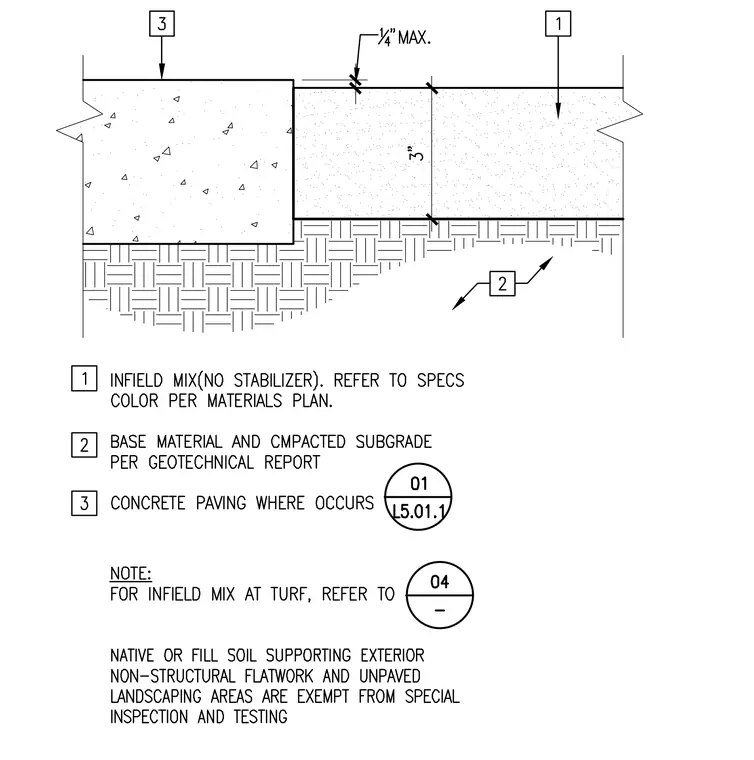

An infield mix without stabilizer sits over a base material and compacted subgrade with a three inch depth. Concrete paving occurs adjacent to the infield mix with a maximum quarter inch separation tolerance. The subgrade and base materials are installed per the geotechnical report with color per the materials plan.
