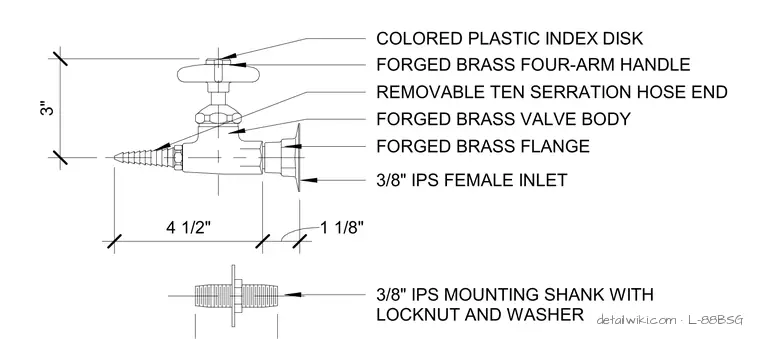

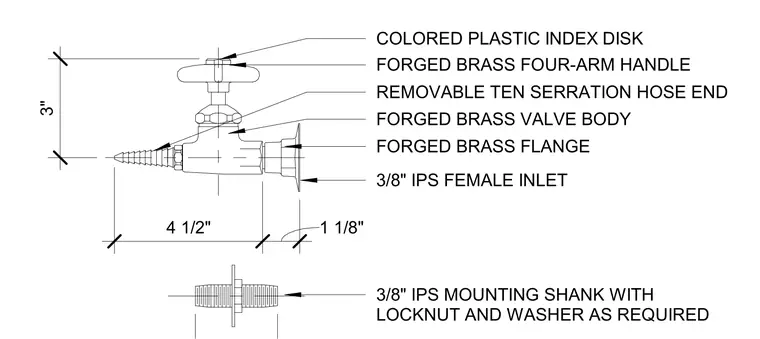

The assembly features a forged brass valve body operated by a forged brass four-arm handle topped with a colored plastic index disk. A removable ten serration hose end extends from the valve, which connects to a 3/8-inch iron pipe size female inlet through a forged brass flange. The overall height measures 3 inches with a length of 4 1/2 inches, alongside a 1 1/8-inch dimension at the flange connection. A separate mounting detail shows a 3/8-inch iron pipe size mounting shank secured with a locknut and washer as required.
COLORED PLASTIC INDEX DISK FORGED BRASS FOUR-ARM HANDLE FORGED BRASS VALVE BODY REMOVABLE TEN SERRATION HOSE END 3/8" IPS FEMALE INLET FORGED BRASS FLANGE 3" 4 1/2" 1 1/8" 3/8" IPS MOUNTING SHANK WITH LOCKNUT AND WASHER AS REQUIRED
