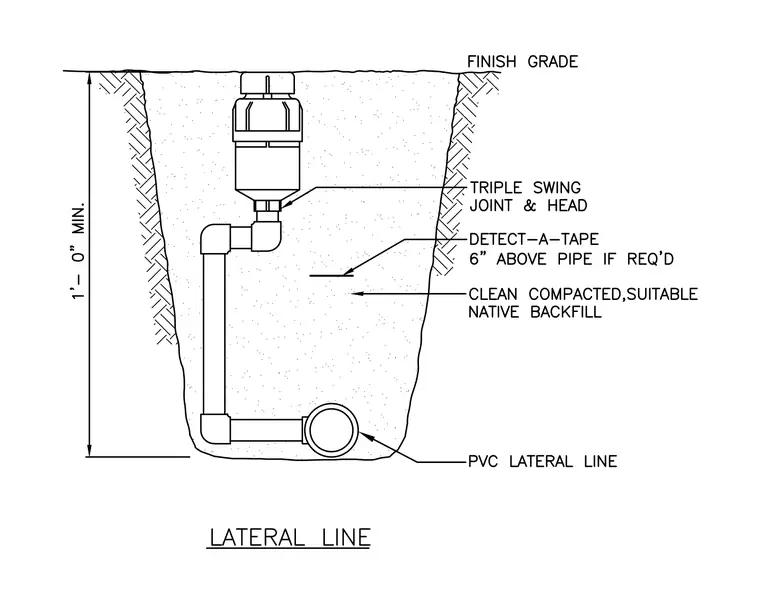

An irrigation lateral line consists of a PVC pipe buried in a trench below finish grade with clean compacted suitable native backfill. A detect-a-tape is positioned six inches above the pipe when required. The riser connects to a triple swing joint and head assembly terminating just below finish grade.
