An eight-inch by sixteen-gauge joist is suspended by four-inch by sixteen-gauge hangers on each side, secured with five number ten self-tapping metal screws at each joist-to-hanger connection. The assembly is supported by a three-by-three by five-sixteenths angle measuring ten inches long, connected with two half-inch diameter A325 bolts spaced at six inches on center, or alternatively welded with a three-sixteenths fillet weld. The angle is welded to the supporting steel beam web with a three-sixteenths fillet weld typically on both sides, offset one and three-quarter inches from the centerline.

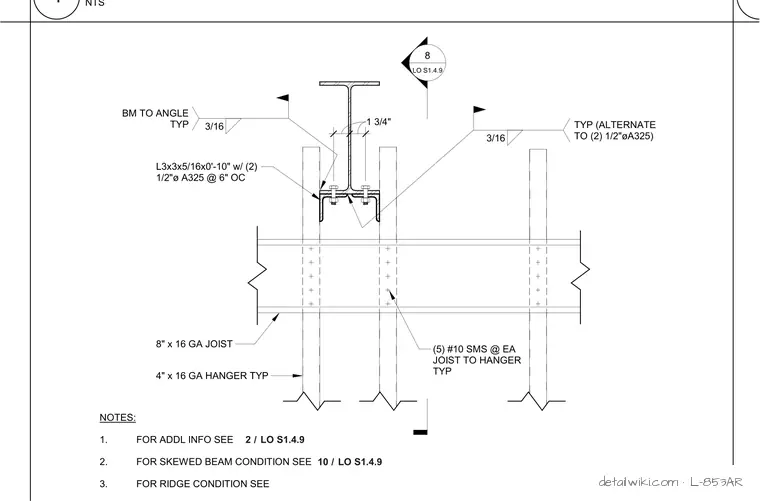

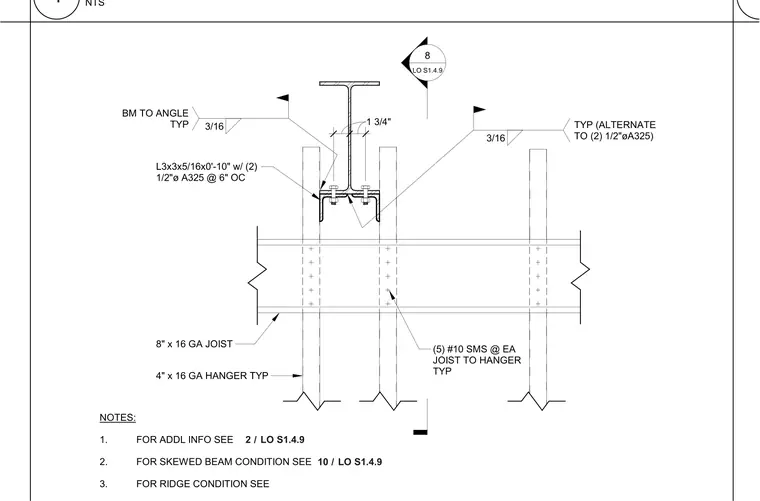

L3x3x5/16x0'-10" w/ (2) 1/2"ø A325 @ 6" OC 4" x 16 GA HANGER TYP 8" x 16 GA JOIST (5) #10 SMS @ EA JOIST TO HANGER TYP 3/16 BM TO ANGLE TYP NOTES: 1. FOR ADDL INFO SEE 2. FOR SKEWED BEAM CONDITION SEE 3. FOR RIDGE CONDITION SEE 3/16 TYP (ALTERNATE TO (2) 1/2"øA325) 1 3/4" 1 3/4" / 2 LO S1.4.9 / 10 LO S1.4.9 8 LO S1.4.9 1 NTS 4
