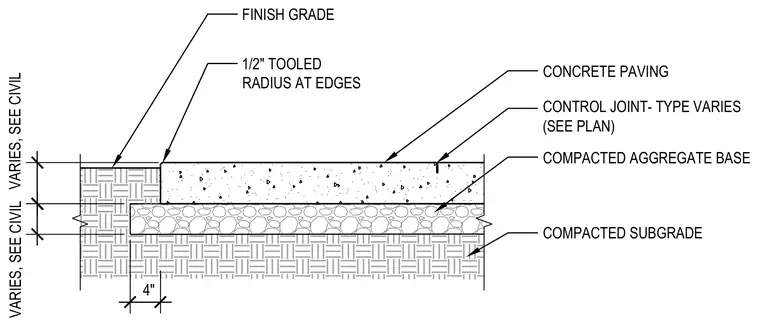

Concrete paving is placed over a compacted aggregate base and compacted subgrade with thicknesses sized per civil drawings. Edges feature a one-half inch tooled radius adjacent to finish grade. A control joint of variable type is cut into the concrete paving according to the site plan.
1/2" TOOLED RADIUS AT EDGES FINISH GRADE 4" VARIES, SEE CIVIL VARIES, SEE CIVIL CONTROL JOINT- TYPE VARIES (SEE PLAN) CONCRETE PAVING COMPACTED AGGREGATE BASE COMPACTED SUBGRADE
