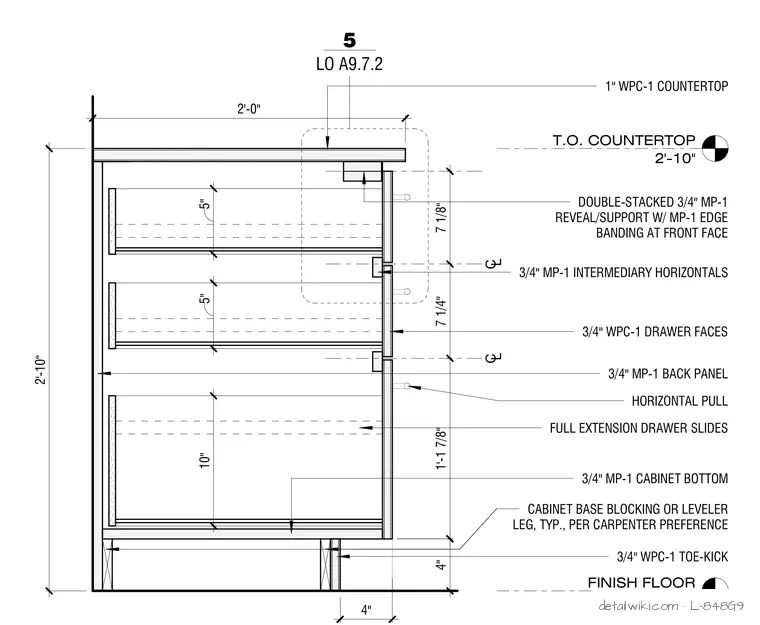

The base cabinet stands two feet ten inches high from the finish floor to the top of the one-inch countertop. The unit features three drawers with three-quarter-inch wood-product drawer faces, horizontal pulls, and full-extension drawer slides mounted inside a three-quarter-inch back panel and cabinet bottom. Intermediary horizontals and double-stacked reveals with edge banding are spaced at seven-and-one-quarter-inch intervals. The base rests on carpenter-preference blocking or leveler legs behind a three-quarter-inch toe-kick.
T.O. COUNTERTOP 2'-10" FINISH FLOOR 3/4" WPC-1 DRAWER FACES HORIZONTAL PULL CABINET BASE BLOCKING OR LEVELER LEG, TYP., PER CARPENTER PREFERENCE 3/4" WPC-1 TOE-KICK FULL EXTENSION DRAWER SLIDES 1" WPC-1 COUNTERTOP 3/4" MP-1 INTERMEDIARY HORIZONTALS 10" DOUBLE-STACKED 3/4" MP-1 REVEAL/SUPPORT W/ MP-1 EDGE BANDING AT FRONT FACE 4" 2'-0" 3/4" MP-1 CABINET BOTTOM 3/4" MP-1 BACK PANEL LO A9.7.2 5 5" 5" 2'-10" 4" 1'-1 7/8" 7 1/4" 7 1/8" CL CL
