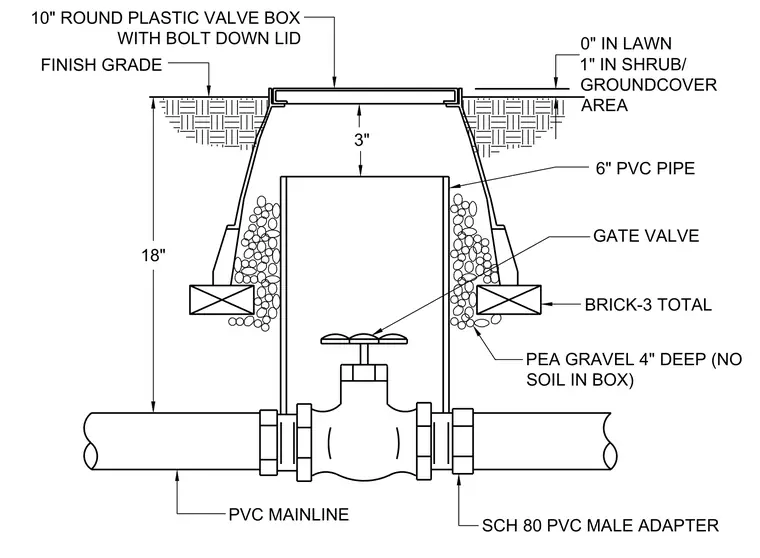

A gate valve is connected to a PVC mainline using Schedule 80 PVC male adapters and enclosed within a protective six-inch PVC pipe sleeve. The assembly rests on four inches of pea gravel with no soil inside the box, supported by three total bricks below the plastic valve box flange. A ten-inch round plastic valve box with a bolt-down lid finishes flush with the lawn grade or one inch above shrub and groundcover areas. The entire buried valve mechanism sits approximately eighteen inches below the finish grade.
3" 10" ROUND PLASTIC VALVE BOX WITH BOLT DOWN LID FINISH GRADE 0" IN LAWN 1" IN SHRUB/ GROUNDCOVER AREA 6" PVC PIPE GATE VALVE BRICK-3 TOTAL PEA GRAVEL 4" DEEP (NO SOIL IN BOX) SCH 80 PVC MALE ADAPTER PVC MAINLINE 18"
