A pop-up spray sprinkler is connected to a PVC lateral pipe through a swing assembly or equal, utilizing a polyvinyl chloride schedule 40 tee or ell fitting. The sprinkler head is positioned flush with the finish grade or top of mulch, adjacent to native mow-free grasses as indicated on the planting plan.

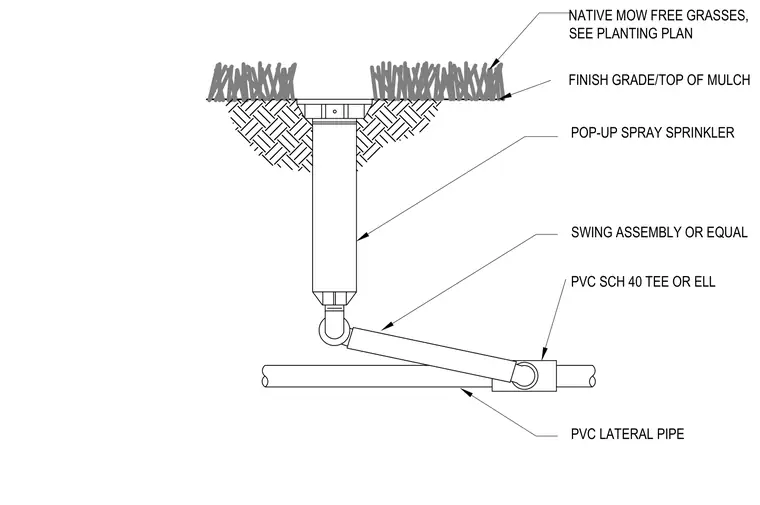

FINISH GRADE/TOP OF MULCH POP-UP SPRAY SPRINKLER SWING ASSEMBLY OR EQUAL PVC SCH 40 TEE OR ELL PVC LATERAL PIPE NATIVE MOW FREE GRASSES, SEE PLANTING PLAN
