Shrub and Tree Planting Details and Notes

About this detail

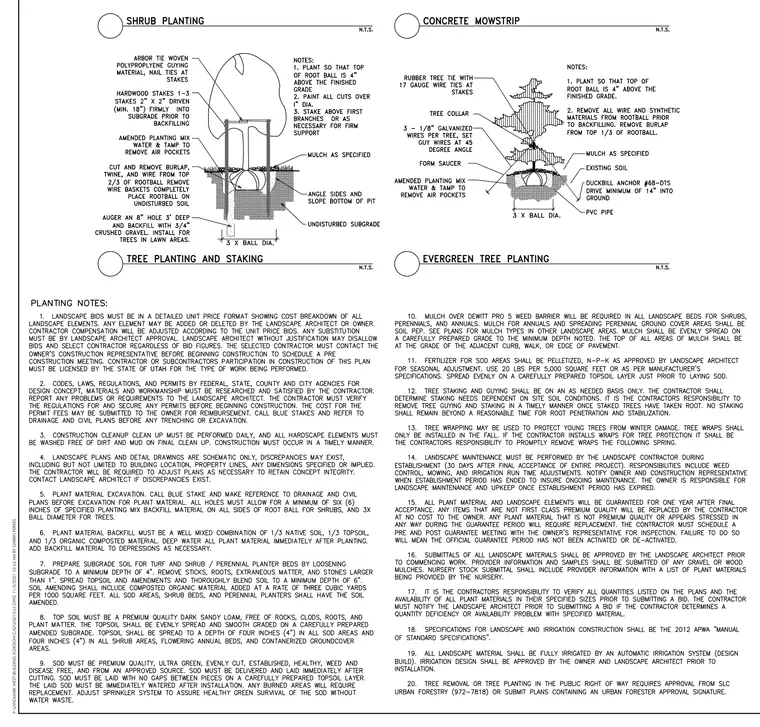

Landscape details illustrating shrub planting, concrete mowstrips, tree planting and staking, and evergreen tree planting over amended planting mix and undisturbed subgrades. The installation requires arbor tie woven polypropylene guying material, hardwood stakes, mulch as specified, duckbill anchors, and PVC pipe. Notes mandate plant placement with the top of the root ball four inches above finished grade, painting all cuts over one inch diameter, and removing burlap and wire from the top third of the root ball.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
