Landscape · L-7VC3C

Cast-in-Place Concrete Seatwall at Structural Slab

Materials

Concrete Reinforced Concrete Steel Brick

Elements

Walls Floors / Slabs Waterproofing / Flashing Site / Paving Reinforcing

Connections

Welded Connection Bolted Connection Expansion / Slip Connection

About this detail

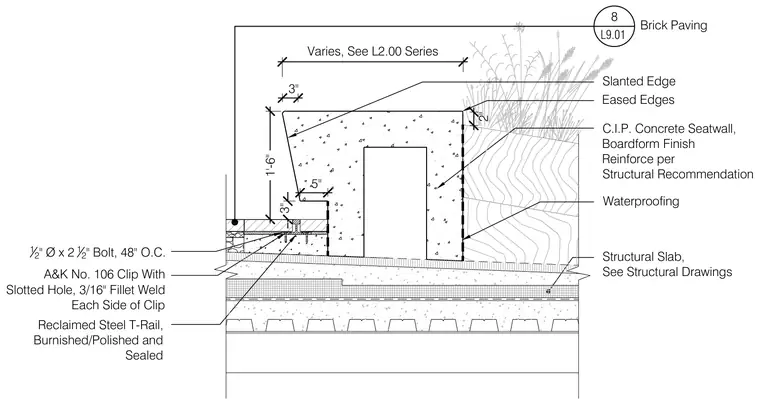

A cast-in-place concrete seatwall with a boardform finish and slanting edges bears upon a structural slab and is waterproofed along its vertical surfaces. The seatwall assembly features a reclaimed steel T-rail anchored by A&K number 106 clips with slotted holes, secured with half-inch diameter by two-and-a-half-inch bolts spaced forty-eight inches on center, and welded with three-sixteenth-inch fillet welds on each side of the clip. Brick paving abuts the assembly, transitioning to soil and planting beds behind the waterproofed seatwall.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
