Landscape · L-7TK5M

Remote Control Valve and Irrigation Box Assembly

Materials

About this detail

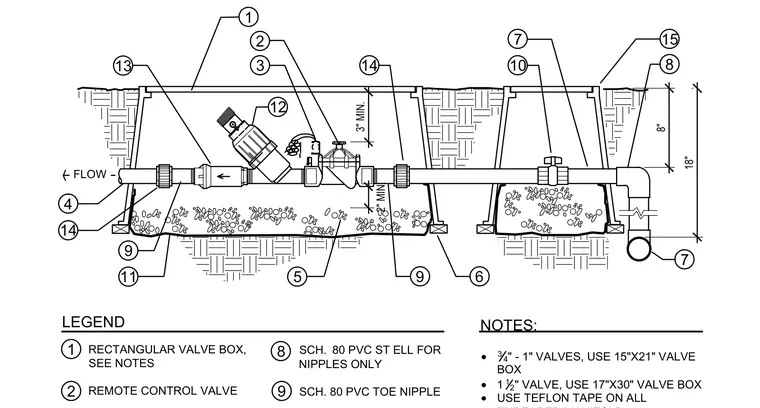

An irrigation remote control valve assembly is housed within a rectangular valve box resting on a compacted gravel bed over subgrade soil. Schedule 80 PVC piping enters the assembly with threaded toe nipples, unions, a check valve, and a Y-strainer preceding the remote control valve. Downstream piping incorporates a ball valve and a PVC street elbow directing the line downward, with Teflon tape applied to all threaded joints. Minimum vertical clearances of three inches above the valve and two inches below are maintained within the enclosure. Sizing rules specify a 15-inch by 21-inch valve box for three-quarter-inch to one-inch valves and a 17-inch by 30-inch box for one-and-a-half-inch valves.
