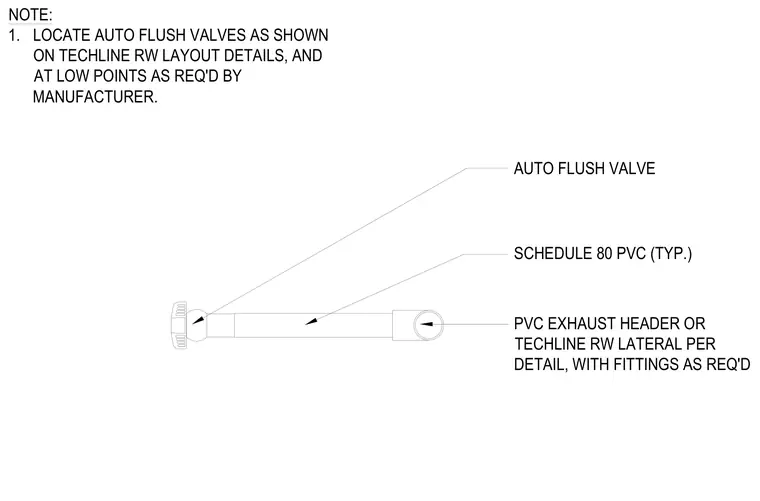

An auto flush valve connects to a schedule 80 PVC pipe, linking to a PVC exhaust header or Techline RW lateral with required fittings. The valve is located as shown on layout details and at low points as required by the manufacturer.
AUTO FLUSH VALVE SCHEDULE 80 PVC (TYP.) PVC EXHAUST HEADER OR TECHLINE RW LATERAL PER DETAIL, WITH FITTINGS AS REQ'D NOTE: 1. LOCATE AUTO FLUSH VALVES AS SHOWN ON TECHLINE RW LAYOUT DETAILS, AND AT LOW POINTS AS REQ'D BY MANUFACTURER.
