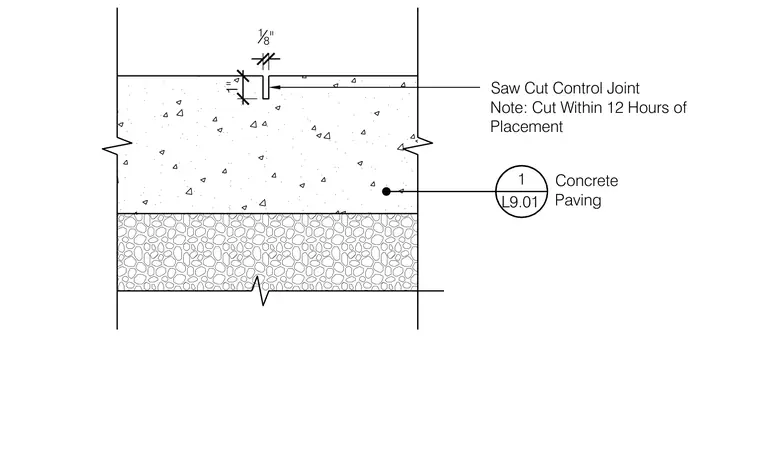

A one-inch deep saw cut control joint is formed in the top surface of the concrete paving slab. The joint width is one-eighth inch, and the cut must be completed within twelve hours of concrete placement. The concrete slab rests on a prepared granular subbase.
1 L9.01 Concrete Paving 1" 18 " Saw Cut Control Joint Note: Cut Within 12 Hours of Placement
