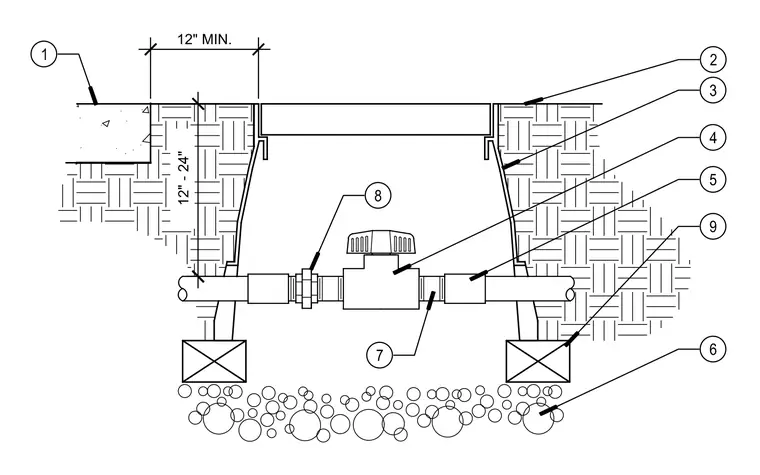

An irrigation valve sits underground inside a protective enclosure supported by concrete blocks and gravel bedding. The valve is connected via threaded piping and a union fitting to supply lines at a depth of twelve to twenty-four inches below grade. A surface lid provides access to the valve assembly.
12" MIN.
