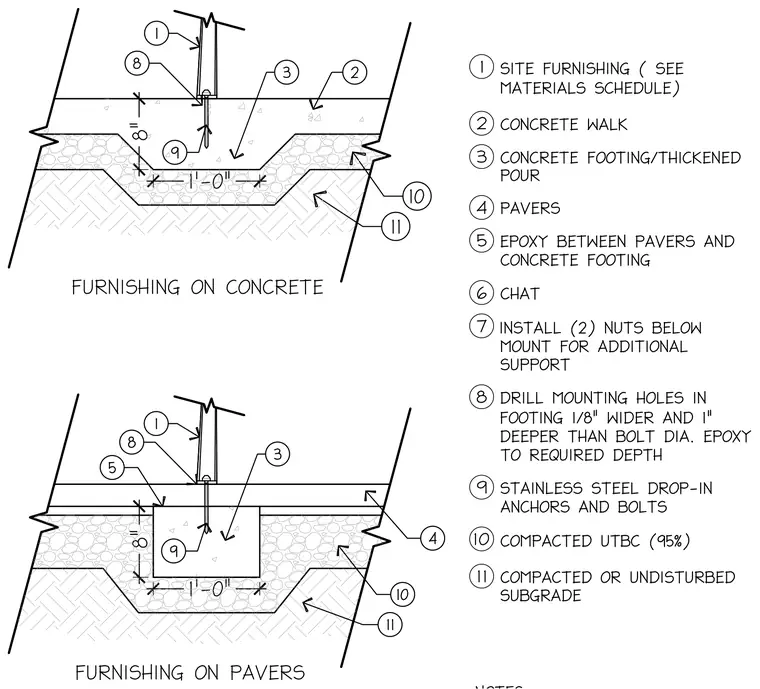

Site furnishings are anchored to concrete walks and footings using stainless steel drop-in anchors and bolts. Mounting holes are drilled one-eighth inch wider and one inch deeper than the bolt diameter, then filled with epoxy to the required depth. Two nuts are installed below the mount for additional support. The concrete walk and footing bear on compacted untreated base course and compacted or undisturbed subgrade, with optional pavers set in epoxy over the footing.
