Control Valve - Drip Circuit

Materials

Elements

Waterproofing / Flashing Connections / Plates

About this detail

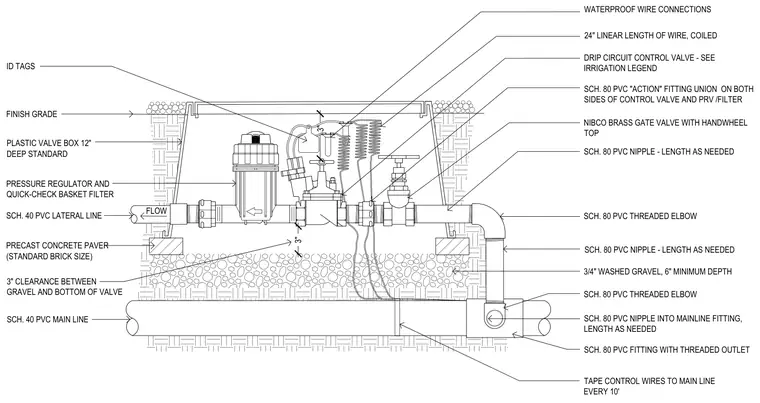

An irrigation drip circuit control valve and pressure regulator with a quick-check basket filter connect into a Schedule 40 PVC lateral line and main line. Schedule 80 PVC nipples, threaded elbows, and Action fitting unions flank both sides of the control valve and pressure-reducing valve filter. A Nibco brass gate valve with a handwheel top ties into the configuration. Waterproof wire connections and a coiled twenty-four-inch linear length of wire hook up to the control valve, with control wires taped to the main line every ten feet. The entire assembly sits inside a standard twelve-inch deep plastic valve box with three inches of clearance above a minimum six-inch depth of three-quarter-inch washed gravel, resting on precast concrete pavers at standard brick size below finish grade.
