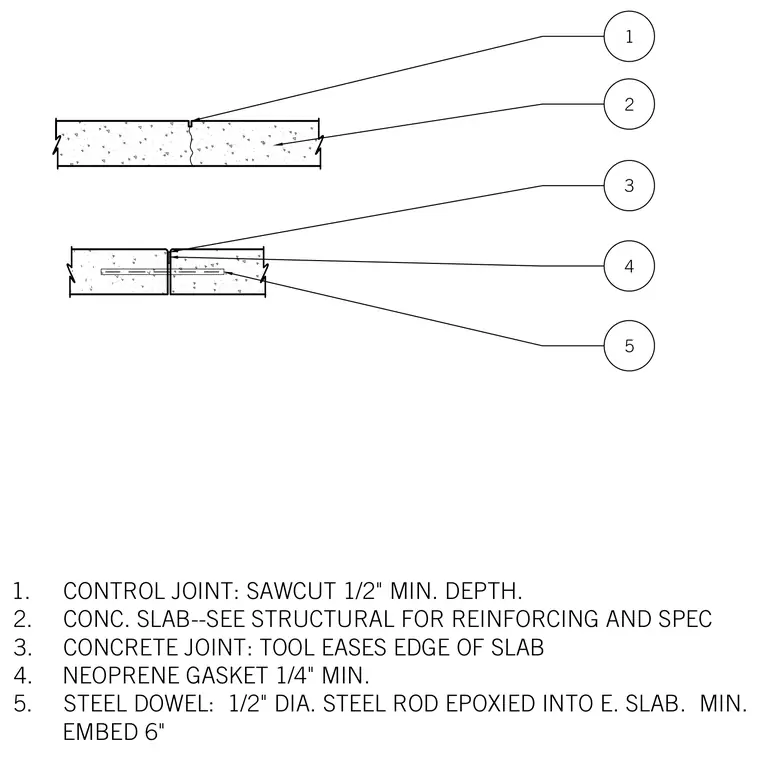

Concrete slab control and expansion joint assemblies. The control joint features a sawcut with a minimum depth of one-half inch in the concrete slab, with reinforcing and specifications per structural drawings. The expansion joint incorporates a tooled edge at the slab, a minimum one-quarter-inch neoprene gasket, and a one-half-inch diameter steel rod dowel epoxied into the existing slab with a minimum embedment of six inches.
1. CONTROL JOINT: SAWCUT 1/2" MIN. DEPTH. 2. CONC. SLAB--SEE STRUCTURAL FOR REINFORCING AND SPEC 3. CONCRETE JOINT: TOOL EASES EDGE OF SLAB 4. NEOPRENE GASKET 1/4" MIN. 5. STEEL DOWEL: 1/2" DIA. STEEL ROD EPOXIED INTO E. SLAB. MIN. EMBED 6" 1 2 3 5 4
