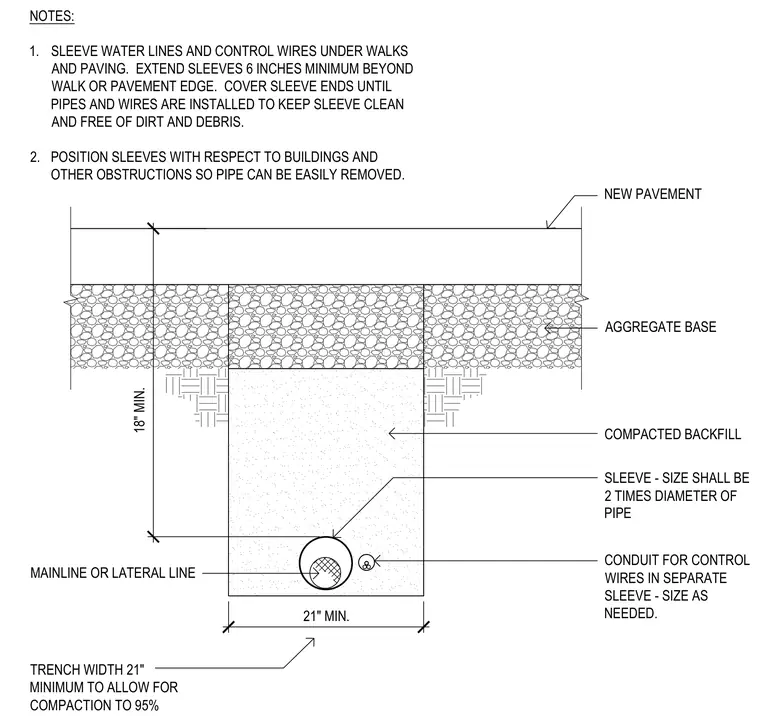

This trench detail shows a minimum twenty-one-inch trench width required to allow for compaction to ninety-five percent aggregate base. A mainline or lateral line sits at the bottom of the trench with a minimum eighteen-inch cover, accompanied by a separate conduit for control wires in its own sleeve sized as needed. The pipe sleeve must be sized at two times the diameter of the pipe. Above the utility lines, the trench is filled with compacted backfill, topped by an aggregate base course, and finished with new pavement.
21" MIN. TRENCH WIDTH 21" MINIMUM TO ALLOW FOR COMPACTION TO 95% AGGREGATE BASE COMPACTED BACKFILL NEW PAVEMENT CONDUIT FOR CONTROL WIRES IN SEPARATE SLEEVE - SIZE AS NEEDED. SLEEVE - SIZE SHALL BE 2 TIMES DIAMETER OF PIPE 18" MIN. MAINLINE OR LATERAL LINE NOTES: 1. SLEEVE WATER LINES AND CONTROL WIRES UNDER WALKS AND PAVING. EXTEND SLEEVES 6 INCHES MINIMUM BEYOND WALK OR PAVEMENT EDGE. COVER SLEEVE ENDS UNTIL PIPES AND WIRES ARE INSTALLED TO KEEP SLEEVE CLEAN AND FREE OF DIRT AND DEBRIS. 2. POSITION SLEEVES WITH RESPECT TO BUILDINGS AND OTHER OBSTRUCTIONS SO PIPE CAN BE EASILY REMOVED.
