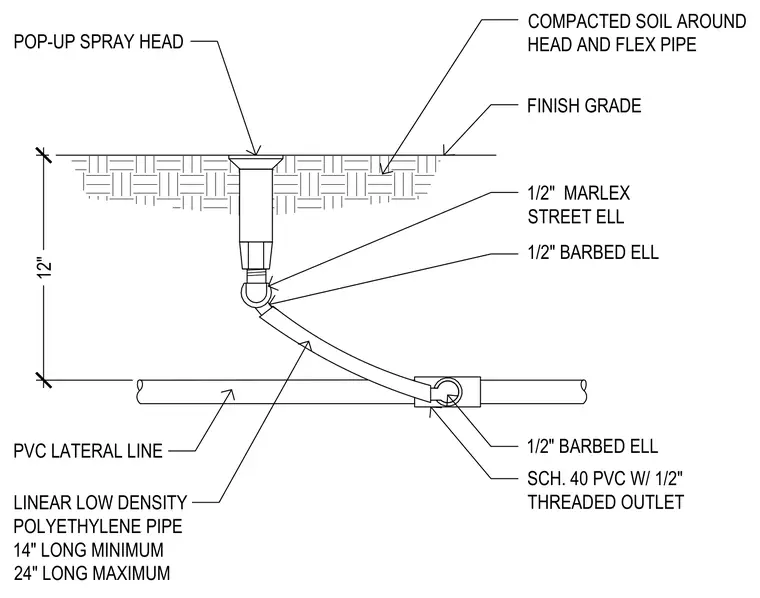

A pop-up spray head connects to a schedule 40 polyvinyl chloride lateral line with a one-half-inch threaded outlet. A one-half-inch Marlex street elbow and barbed elbow link the spray head to a linear low-density polyethylene flex pipe. This flexible pipe measures between fourteen inches minimum and twenty-four inches maximum in length. Compacted soil surrounds the head and flex pipe up to the finish grade.
FINISH GRADE COMPACTED SOIL AROUND HEAD AND FLEX PIPE POP-UP SPRAY HEAD 1/2" MARLEX STREET ELL 1/2" BARBED ELL 12" 1/2" BARBED ELL LINEAR LOW DENSITY POLYETHYLENE PIPE 14" LONG MINIMUM 24" LONG MAXIMUM PVC LATERAL LINE SCH. 40 PVC W/ 1/2" THREADED OUTLET
