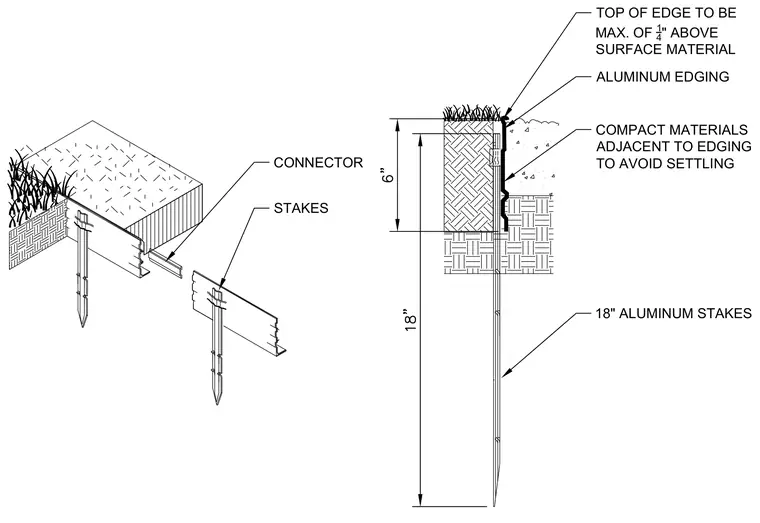

An extruded aluminum edging profile separates ground surfaces and retains turf or paving materials. Eighteen-inch aluminum stakes anchor the edging vertically into the subgrade at regular intervals along the run. Metal connectors join adjacent edging sections securely end-to-end to maintain alignment. The top of the edging is set to a maximum of one-quarter inch above the finished surface material. Compacted base materials adjacent to the edging prevent settling and lateral displacement over time.
CONNECTOR STAKES ALUMINUM EDGING TOP OF EDGE TO BE MAX. OF 1 4 " ABOVE SURFACE MATERIAL COMPACT MATERIALS ADJACENT TO EDGING TO AVOID SETTLING 18" ALUMINUM STAKES
