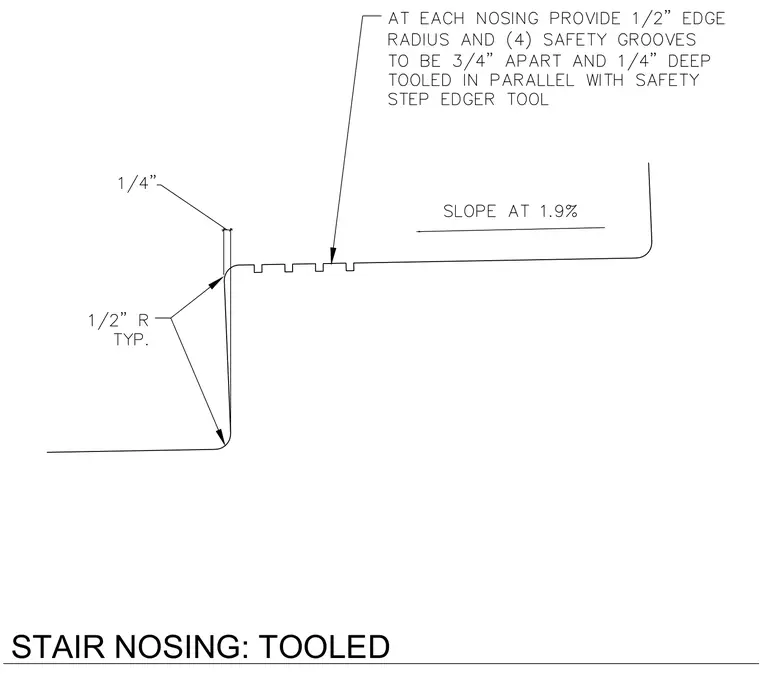

At each stair nosing, provide a one-half inch edge radius and four safety grooves that are three-quarters of an inch apart and one-quarter of an inch deep, tooled in parallel with a safety step edger tool. The tread maintains a slope at one point nine percent.
