Green Roof Soil System with Tree Planting Assembly

Elements

Roofs Waterproofing / Flashing Drainage Roof / Floor Openings

About this detail

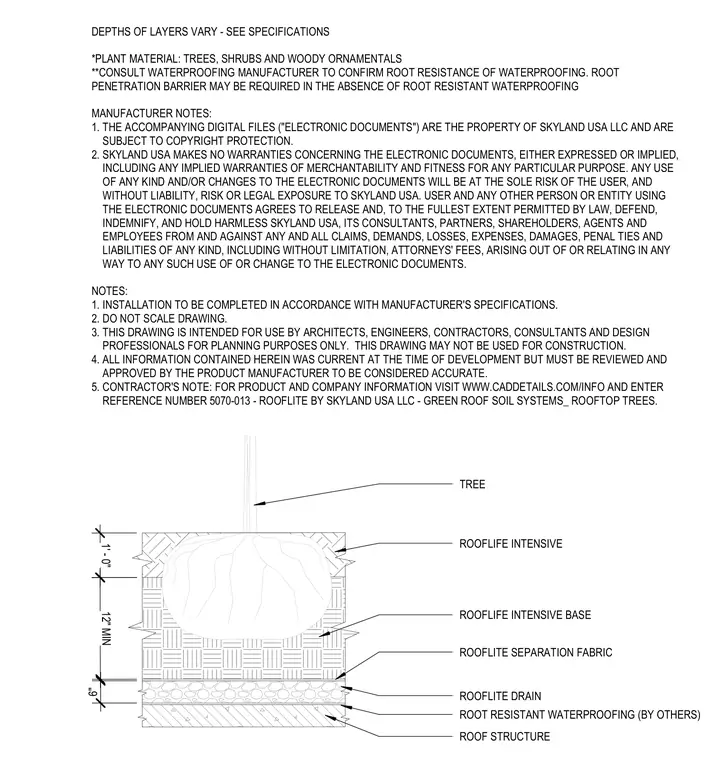

This green roof detail for rooftop tree planting rests directly upon the concrete or structural roof deck. A root-resistant waterproofing membrane applied by others lines the structural slab, supplemented by a root penetration barrier when required by the manufacturer. Over the waterproofing sits a specialized drainage layer, topped with a separation fabric to prevent soil migration. The assembly layers upwards with an intensive base soil course and a primary Rooflite intensive growing medium supporting trees, shrubs, and woody ornamentals. Layer depths vary per specifications and tree root ball requirements.

DEPTHS OF LAYERS VARY - SEE SPECIFICATIONS *PLANT MATERIAL: TREES, SHRUBS AND WOODY ORNAMENTALS **CONSULT WATERPROOFING MANUFACTURER TO CONFIRM ROOT RESISTANCE OF WATERPROOFING. ROOT PENETRATION BARRIER MAY BE REQUIRED IN THE ABSENCE OF ROOT RESISTANT WATERPROOFING MANUFACTURER NOTES: 1. THE ACCOMPANYING DIGITAL FILES ("ELECTRONIC DOCUMENTS") ARE THE PROPERTY OF SKYLAND USA LLC AND ARE SUBJECT TO COPYRIGHT PROTECTION. 2. SKYLAND USA MAKES NO WARRANTIES CONCERNING THE ELECTRONIC DOCUMENTS, EITHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE. ANY USE OF ANY KIND AND/OR CHANGES TO THE ELECTRONIC DOCUMENTS WILL BE AT THE SOLE RISK OF THE USER, AND WITHOUT LIABILITY, RISK OR LEGAL EXPOSURE TO SKYLAND USA. USER AND ANY OTHER PERSON OR ENTITY USING THE ELECTRONIC DOCUMENTS AGREES TO RELEASE AND, TO THE FULLEST EXTENT PERMITTED BY LAW, DEFEND, INDEMNIFY, AND HOLD HARMLESS SKYLAND USA, ITS CONSULTANTS, PARTNERS, SHAREHOLDERS, AGENTS AND EMPLOYEES FROM AND AGAINST ANY AND ALL CLAIMS, DEMANDS, LOSSES, EXPENSES, DAMAGES, PENAL TIES AND LIABILITIES OF ANY KIND, INCLUDING WITHOUT LIMITATION, ATTORNEYS' FEES, ARISING OUT OF OR RELATING IN ANY WAY TO ANY SUCH USE OF OR CHANGE TO THE ELECTRONIC DOCUMENTS. NOTES: 1. INSTALLATION TO BE COMPLETED IN ACCORDANCE WITH MANUFACTURER'S SPECIFICATIONS. 2. DO NOT SCALE DRAWING. 3. THIS DRAWING IS INTENDED FOR USE BY ARCHITECTS, ENGINEERS, CONTRACTORS, CONSULTANTS AND DESIGN PROFESSIONALS FOR PLANNING PURPOSES ONLY. THIS DRAWING MAY NOT BE USED FOR CONSTRUCTION. 4. ALL INFORMATION CONTAINED HEREIN WAS CURRENT AT THE TIME OF DEVELOPMENT BUT MUST BE REVIEWED AND APPROVED BY THE PRODUCT MANUFACTURER TO BE CONSIDERED ACCURATE. 5. CONTRACTOR'S NOTE: FOR PRODUCT AND COMPANY INFORMATION VISIT WWW.CADDETAILS.COM/INFO AND ENTER REFERENCE NUMBER 5070-013 - ROOFLITE BY SKYLAND USA LLC - GREEN ROOF SOIL SYSTEMS_ ROOFTOP TREES. ROOF STRUCTURE ROOT RESISTANT WATERPROOFING (BY OTHERS) ROOFLITE DRAIN ROOFLITE SEPARATION FABRIC ROOFLIFE INTENSIVE BASE ROOFLIFE INTENSIVE TREE 6" 1' - 0" 12" MIN

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
