Landscape · L-78724

Tree Root Bubbler

Elements

About this detail

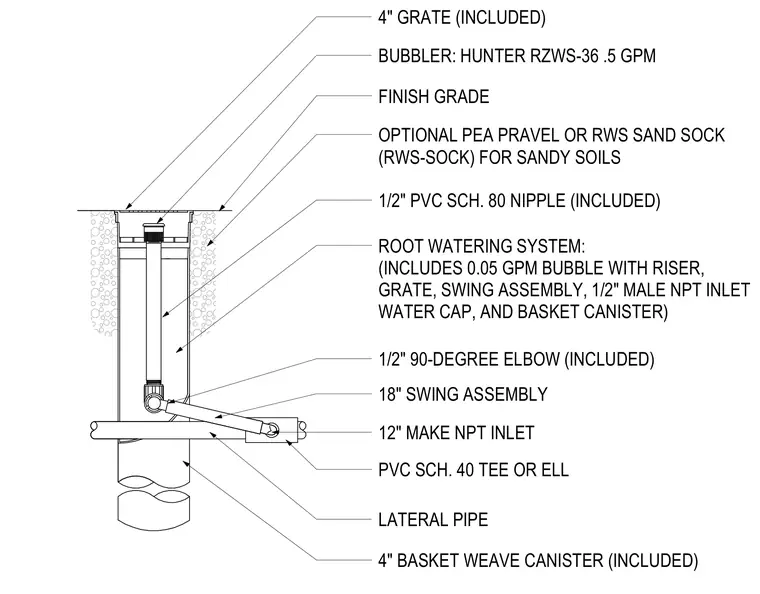

A Hunter RZWS-36 root watering system is installed flush with the finish grade and connected to an underground lateral pipe. The assembly comprises a 4-inch grate, a 0.5 GPM bubbler with riser, an 18-inch swing assembly, a 1/2-inch PVC schedule 80 nipple, and a 4-inch basket weave canister. An optional pea gravel or RWS sand sock surrounds the canister for sandy soils. The lateral pipe ties into the system using a PVC schedule 40 tee or elbow along with a 1/2-inch 90-degree elbow.
