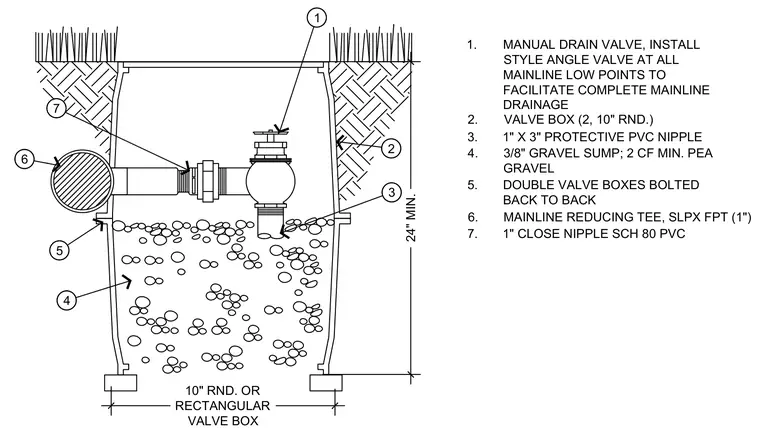

An angle-style manual drain valve is installed at irrigation mainline low points to facilitate complete system drainage. The assembly sits within double round or rectangular PVC valve boxes bolted back-to-back, with a minimum twenty-four-inch depth. A one-inch by three-inch protective PVC nipple and a one-inch schedule eighty PVC close nipple connect the valve to a mainline reducing tee with slip by female pipe thread ends. The entire unit rests over a minimum two cubic foot bed of three-eighths-inch pea gravel functioning as a drainage sump.
24" MIN. 10" RND. OR RECTANGULAR VALVE BOX 1. MANUAL DRAIN VALVE, INSTALL STYLE ANGLE VALVE AT ALL MAINLINE LOW POINTS TO FACILITATE COMPLETE MAINLINE DRAINAGE 2. VALVE BOX (2, 10" RND.) 3. 1" X 3" PROTECTIVE PVC NIPPLE 7. 1" CLOSE NIPPLE SCH 80 PVC 6. MAINLINE REDUCING TEE, SLPX FPT (1") 4. 3/8" GRAVEL SUMP; 2 CF MIN. PEA GRAVEL 5. DOUBLE VALVE BOXES BOLTED BACK TO BACK 1 2 3 7 6 5 4
