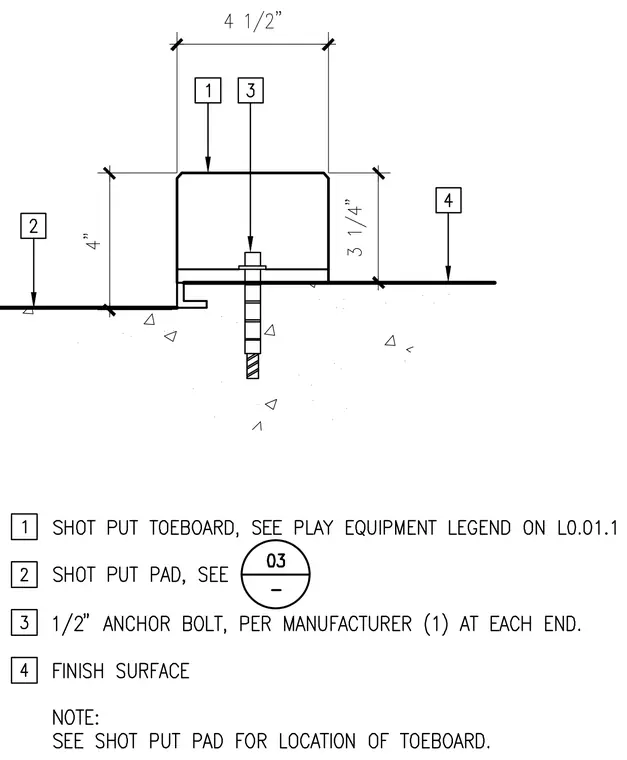

The shot put toeboard is anchored to the shot put pad with one one-half inch anchor bolt at each end per the manufacturer specifications. The toeboard measures four and one-half inches wide by four inches high, with a three and one-quarter inch height above the finish surface. The shot put pad provides the exact location for the toeboard installation.
