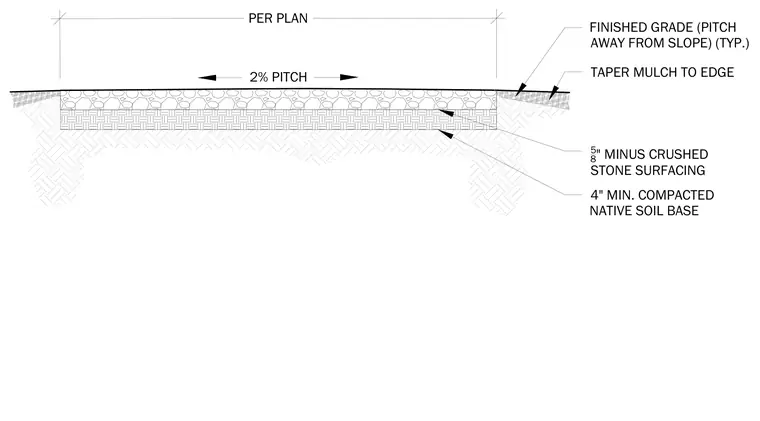

A soft surface trail is constructed with four inches of minimum compacted native soil base, finished with five-eighths inch minus crushed stone surfacing. The trail width is determined per plan and features a two percent cross pitch for drainage. Finished grade is pitched away from the slope typically, with mulch tapered to the edge.
2% PITCH 4" MIN. COMPACTED NATIVE SOIL BASE TAPER MULCH TO EDGE FINISHED GRADE (PITCH AWAY FROM SLOPE) (TYP.) PER PLAN 5 8 " MINUS CRUSHED STONE SURFACING
