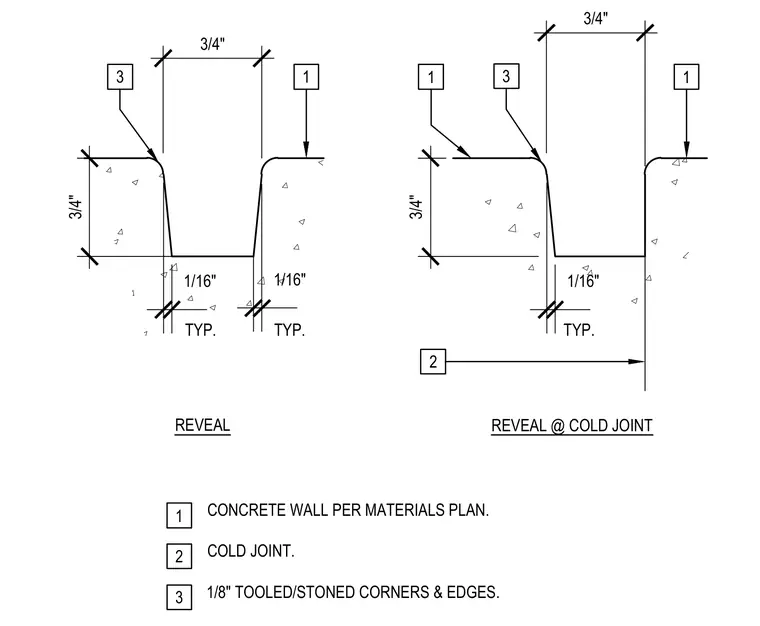

The concrete wall features a three-quarter-inch wide by three-quarter-inch deep reveal profile cast into the surface. All internal corners and edges are finished with one-eighth-inch tooled or stoned radii. A cold joint is integrated adjacent to the reveal as specified on the materials plan, maintaining typical one-sixteenth-inch dimensional tolerances.
3/4" 3/4" REVEAL @ COLD JOINT REVEAL 1/16" 3/4" 1/16" 1/16" TYP. TYP. TYP. 3/4" CONCRETE WALL PER MATERIALS PLAN. COLD JOINT. 1/8" TOOLED/STONED CORNERS & EDGES. 1 2 3 3 1 1 1 3 2
