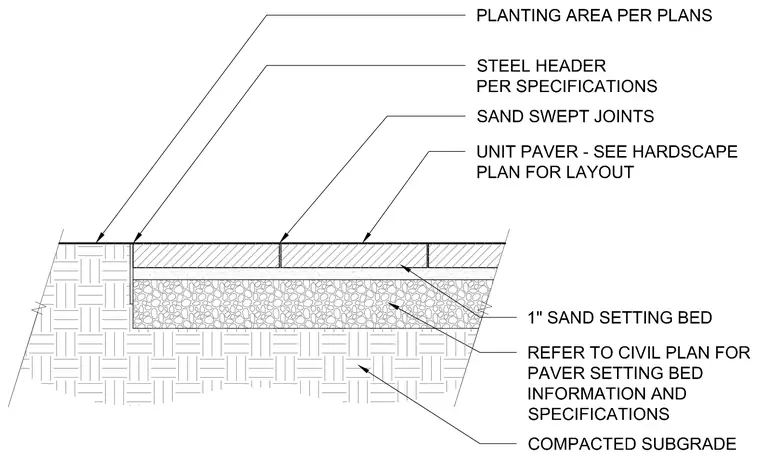

Unit pavers sit on a one inch sand setting bed with sand swept joints over a setting bed supported by a compacted subgrade. A steel header per specifications separates the paver assembly from the adjacent planting area per plans. Paver layout and setting bed information follow the hardscape and civil plans.
UNIT PAVER - SEE HARDSCAPE PLAN FOR LAYOUT REFER TO CIVIL PLAN FOR PAVER SETTING BED INFORMATION AND SPECIFICATIONS SAND SWEPT JOINTS 1" SAND SETTING BED STEEL HEADER PER SPECIFICATIONS PLANTING AREA PER PLANS COMPACTED SUBGRADE
