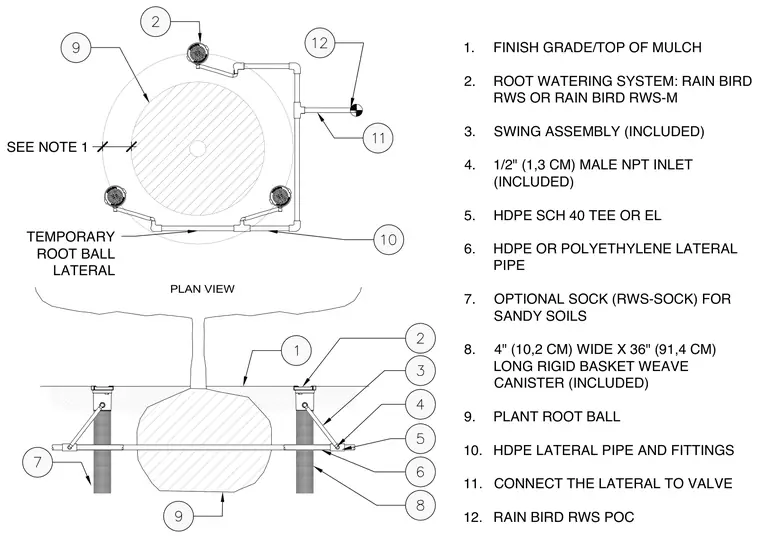

This installation detail shows a root watering system positioned around a plant root ball below the finish grade and top of mulch. The assembly incorporates a rigid basket weave canister connected via a swing assembly and a half-inch male National Pipe Thread inlet to high-density polyethylene Schedule 40 lateral pipes and fittings. An optional geotextile sock surrounds the canister for sandy soil applications. The lateral pipe connects to the irrigation valve at the point of connection.
1. FINISH GRADE/TOP OF MULCH 2. ROOT WATERING SYSTEM: RAIN BIRD RWS OR RAIN BIRD RWS-M 3. SWING ASSEMBLY (INCLUDED) 4. 1/2" (1,3 CM) MALE NPT INLET (INCLUDED) 5. HDPE SCH 40 TEE OR EL 6. HDPE OR POLYETHYLENE LATERAL PIPE 7. OPTIONAL SOCK (RWS-SOCK) FOR SANDY SOILS 8. 4" (10,2 CM) WIDE X 36" (91,4 CM) LONG RIGID BASKET WEAVE CANISTER (INCLUDED) 9. PLANT ROOT BALL 10. HDPE LATERAL PIPE AND FITTINGS 11. CONNECT THE LATERAL TO VALVE 12. RAIN BIRD RWS POC SEE NOTE 1 PLAN VIEW TEMPORARY ROOT BALL LATERAL
