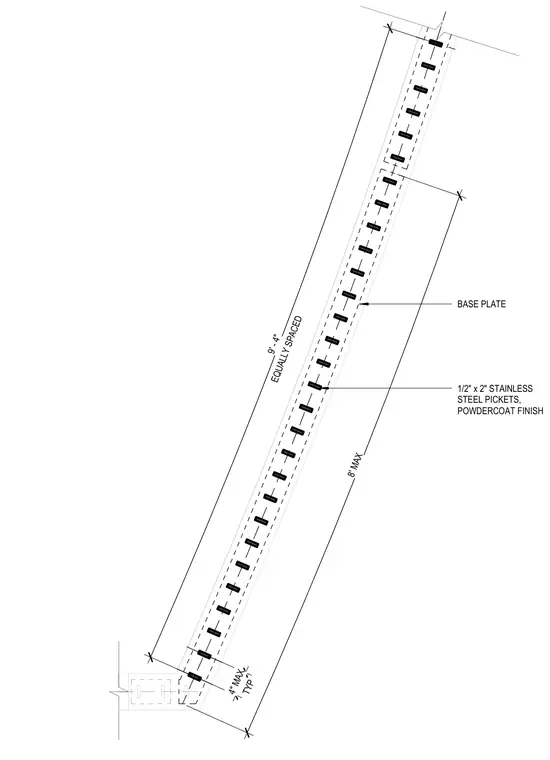

This curved metal fence assembly consists of 1/2-inch by 2-inch stainless steel pickets with a powdercoat finish welded or anchored to a continuous base plate. Pickets are spaced at a maximum of 4 inches on center. The overall layout spans an 8-foot maximum module within a 9-foot 4-inch curved radius configuration.
TYP 4" MAX EQUALLY SPACED 9' - 4" 8' MAX BASE PLATE 1/2" x 2" STAINLESS STEEL PICKETS, POWDERCOAT FINISH
