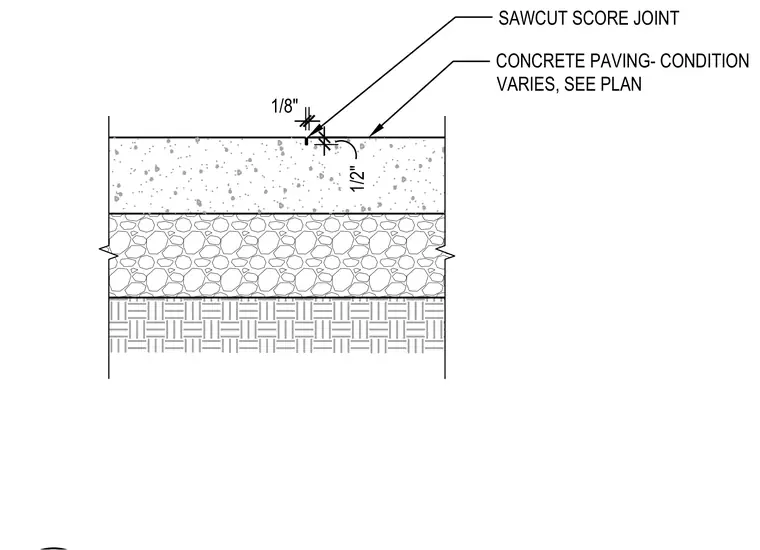

A sawcut score joint is formed in the concrete paving at a width of one-eighth inch and a depth of one-half inch. The concrete paving rests upon a compacted aggregate base course and subgrade, with conditions varying per plan.
