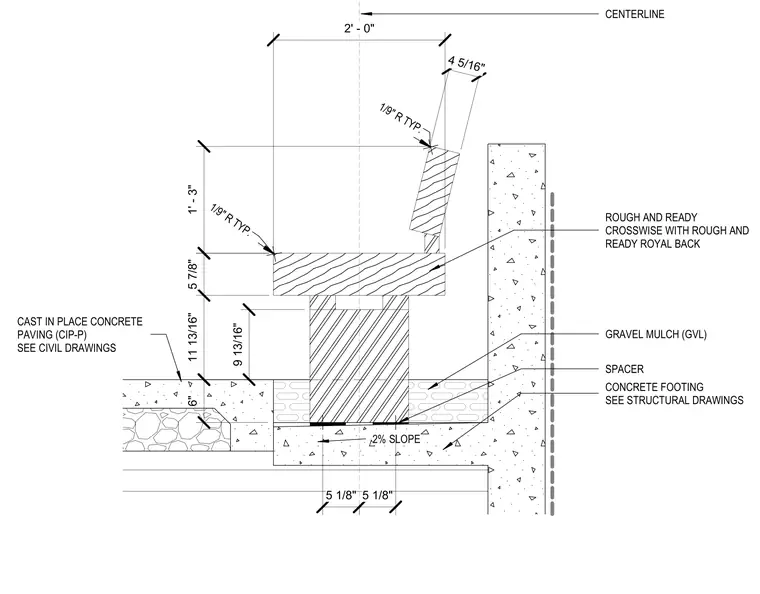

A wooden bench seat and backrest with rough and ready crosswise and royal back members mount to a metal support structure anchored over a concrete footing. A spacer sits beneath the support over a gravel mulch bed and cast-in-place concrete paving with a two percent slope. The entire assembly ties into an adjacent concrete wall.
ROUGH AND READY CROSSWISE WITH ROUGH AND READY ROYAL BACK GRAVEL MULCH (GVL) SPACER CONCRETE FOOTING SEE STRUCTURAL DRAWINGS 2% SLOPE 4 5/16" 1/9" R TYP. 2' - 0" 5 7/8" 11 13/16" 9 13/16" 1/9" R TYP. 1' - 3" 6" 5 1/8" 5 1/8" CENTERLINE CAST IN PLACE CONCRETE PAVING (CIP-P) SEE CIVIL DRAWINGS
