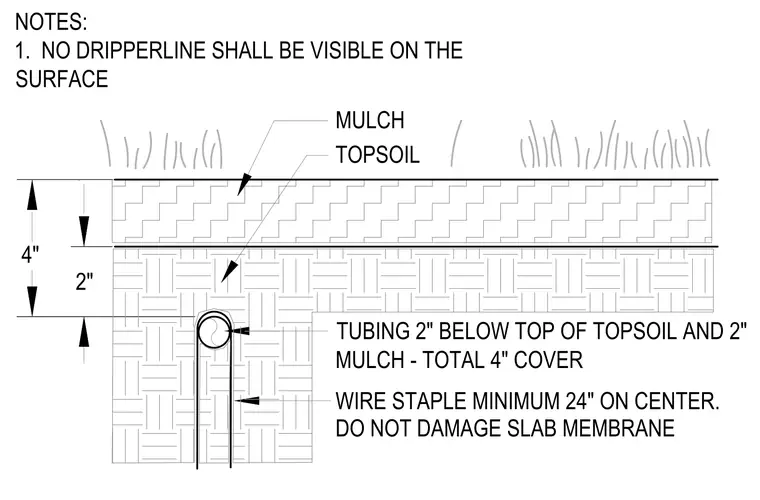

This landscape detail shows a dripline tubing installation secured with wire staples spaced at a minimum of twenty-four inches on center, positioned to avoid damaging the underlying slab membrane. The tubing is installed two inches below the top of the topsoil, which sits beneath a four-inch layer of mulch, providing a total cover of four inches. Notes specify that no dripperline shall be visible on the surface.
TOPSOIL WIRE STAPLE MINIMUM 24" ON CENTER. DO NOT DAMAGE SLAB MEMBRANE NOTES: 1. NO DRIPPERLINE SHALL BE VISIBLE ON THE SURFACE 2" TUBING 2" BELOW TOP OF TOPSOIL AND 2" MULCH - TOTAL 4" COVER MULCH 4"
