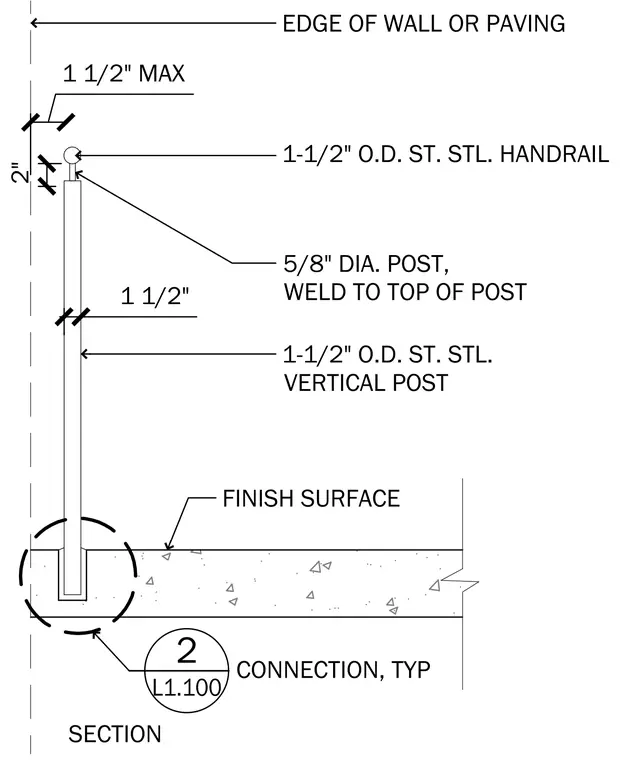

A one-and-a-half-inch outside diameter stainless steel vertical post supports a one-and-a-half-inch outside diameter stainless steel handrail at the top via a five-eighths-inch diameter post welded to the top of the post. The vertical post sets back one and a half inches maximum from the edge of the wall or paving finish surface. The base of the post embeds into the finish surface slab with a typical connection detailed elsewhere.
SECTION 5/8" DIA. POST, WELD TO TOP OF POST 1 1/2" 2 1-1/2" O.D. ST. STL. HANDRAIL EDGE OF WALL OR PAVING 1-1/2" O.D. ST. STL. VERTICAL POST FINISH SURFACE CONNECTION, TYP 1 1/2" MAX
