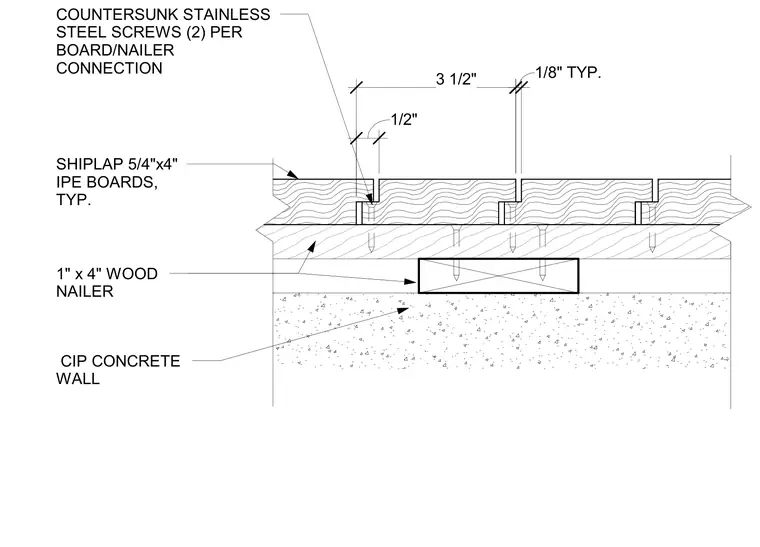

Five-quarter by four-inch shiplap Ipe boards with a one-eighth-inch typical gap are secured to one-by-four-inch wood nailers over a cast-in-place concrete wall. Two countersunk stainless steel screws are used per board and nailer connection.
1/8" TYP. SHIPLAP 5/4"x4" IPE BOARDS, TYP. 1" x 4" WOOD NAILER CIP CONCRETE WALL 3 1/2" 1/2" COUNTERSUNK STAINLESS STEEL SCREWS (2) PER BOARD/NAILER CONNECTION
