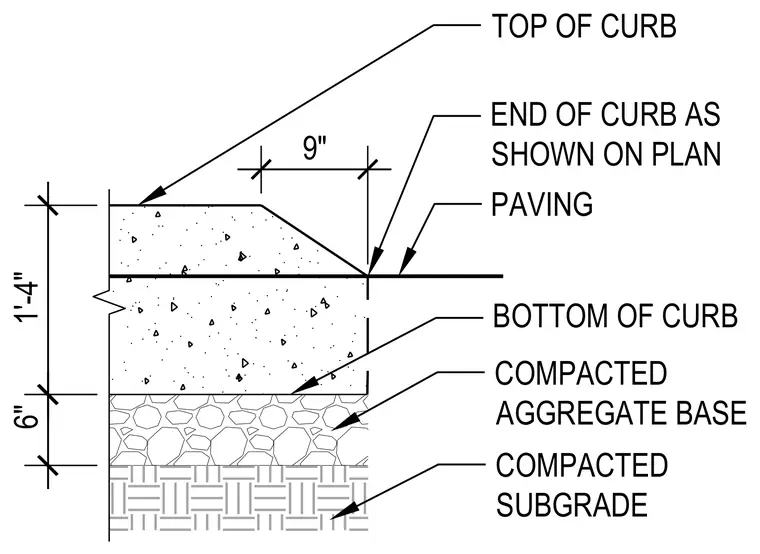

An end condition of a concrete curb transitions down to meet adjacent paving. The curb stands one foot four inches high above the bottom of the curb, resting on six inches of compacted aggregate base over a compacted subgrade. The sloped end of the curb extends nine inches horizontally to meet the paving surface as indicated on plan.
1'-4" 9" 6" TOP OF CURB END OF CURB AS SHOWN ON PLAN PAVING BOTTOM OF CURB COMPACTED AGGREGATE BASE COMPACTED SUBGRADE
