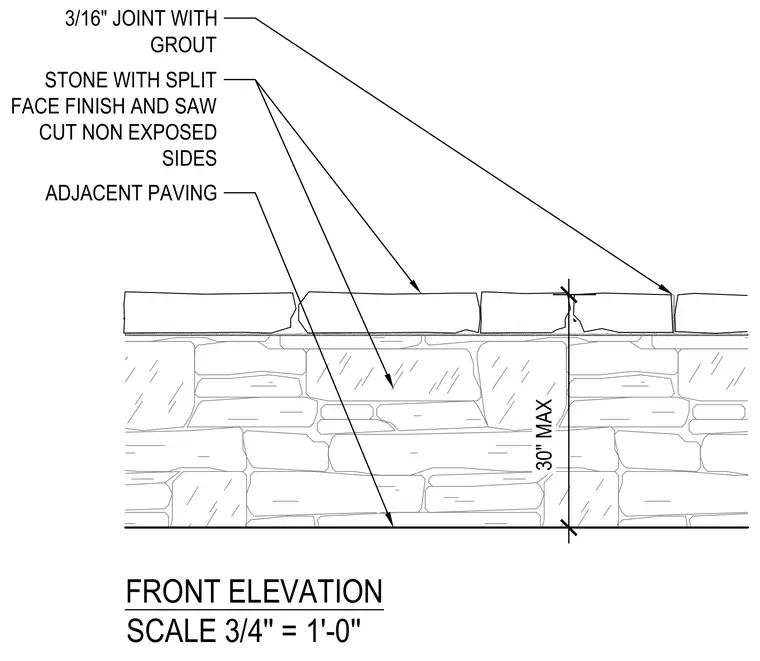

Stone masonry wall constructed with a split face finish and saw cut non exposed sides, featuring three-sixteenths inch joints with grout. The wall connects to adjacent paving and stands at a maximum height of thirty inches.
FRONT ELEVATION SCALE 3/4'' = 1'-0'' STONE WITH SPLIT FACE FINISH AND SAW CUT NON EXPOSED SIDES 3/16" JOINT WITH GROUT ADJACENT PAVING 30" MAX
